Projects - Soundlab mini synth

03feb21

SOUNDLAB MINI SYNTH

Cant exactly remember which year i made this. It was a diy kit i ordered from a website called http://musicfromouterspace.com, with some help from my father i got the wooden box and acrylic front made.

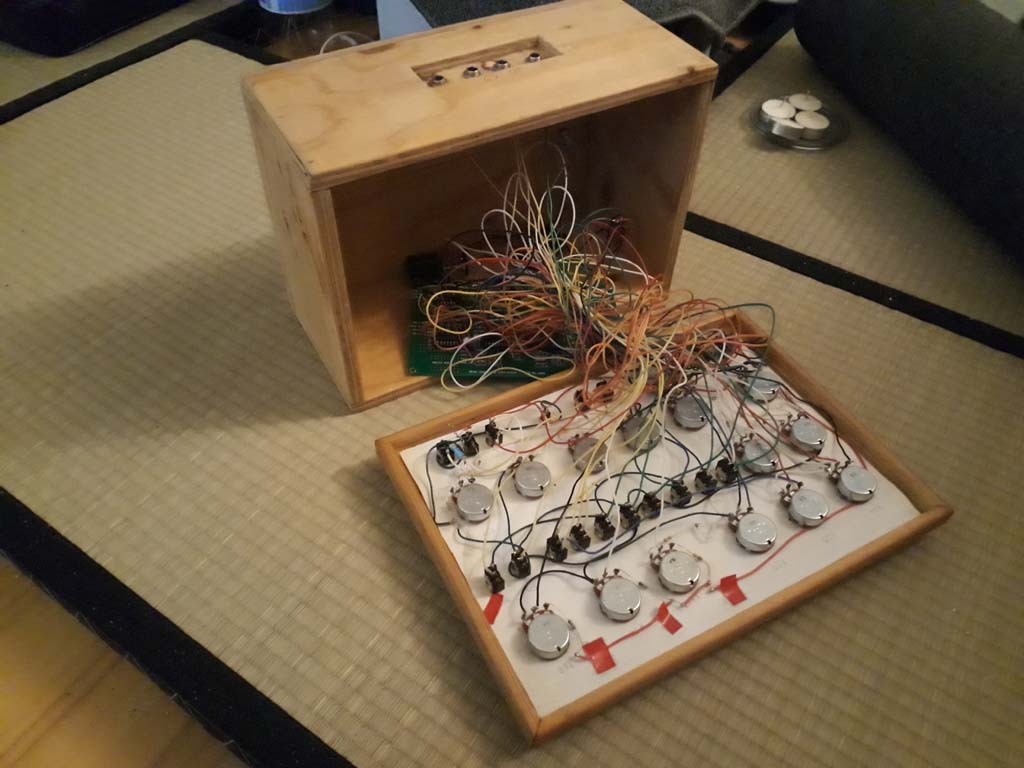

The rest required alot soldering wires, transistor, resisitors, capacitors, potentiometers on the green printet board. I had no experience at the time.

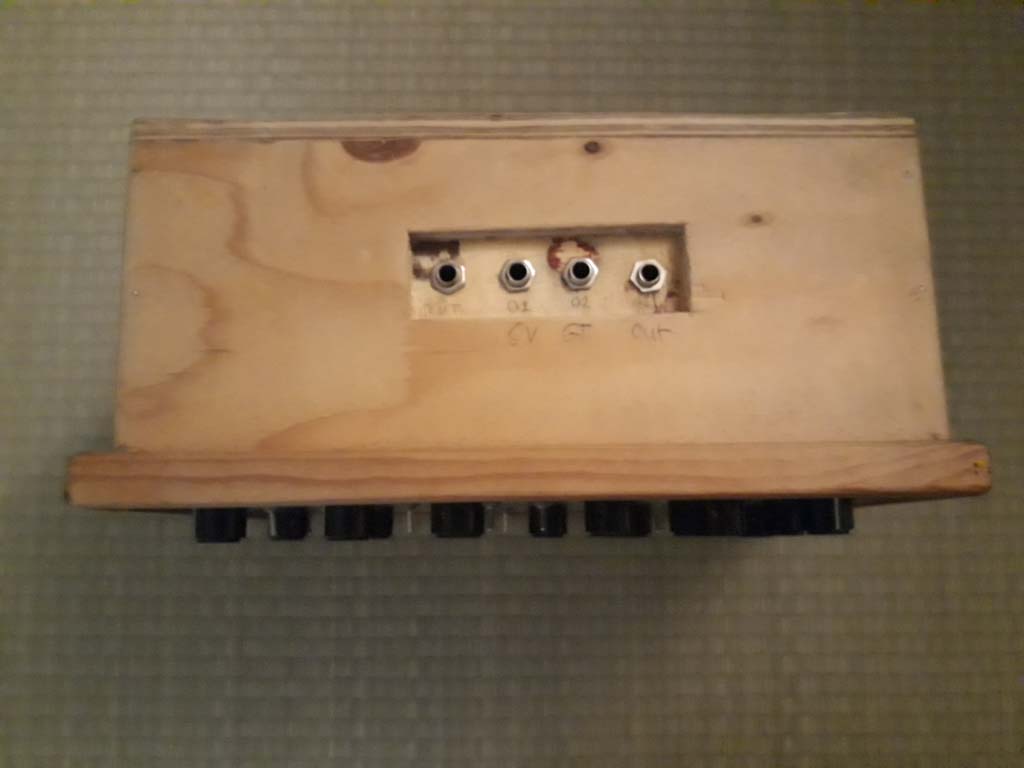

But with some pure luck, i succeeded in soldering everything right. Sadly i lost all images from the process back when i made it, so i took some pictures of it this day to put up.
